Floating Head Shell-and-Tube Graphite Heat Exchanger

Floating Head Shell-and-Tube Graphite Heat Exchanger

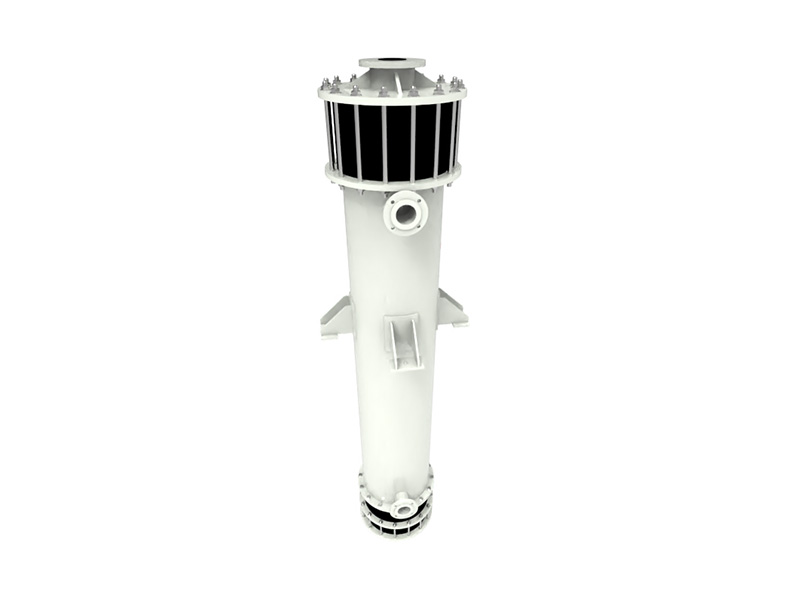

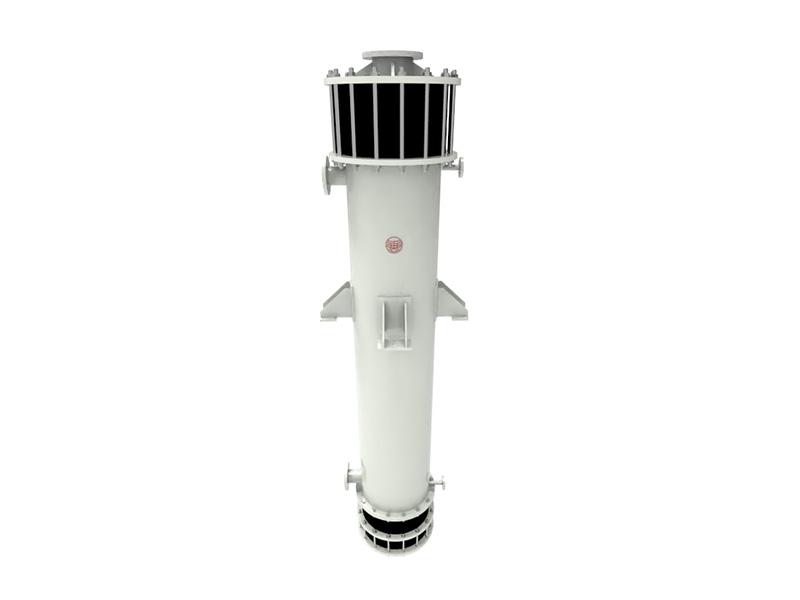

A floating head shell-and-tube graphite heat exchanger is a highly efficient and reliable heat transfer device. It consists of a shell, tubes, a floating head, and other components.

  • Payment:

    TT L/C PayPal Westunion Moneygram
  • Product Origin:

    China, Anhui province
  • Shipping Port:

    Shanghai
  • Lead Time:

    1 Month
  • MOQ:

    1
  • Package:

    Wooden case
  • Color:

    Customzied
  • Material:

    Graphite
  • Working Temp:

    -20 to 140 ℃
  • Working Pressure:

    Tube range≤0.2Mpa,Shell range≤0.3Mpa



Product review

The equipment features a simple and compact structure with low fluid resistance, enabling the manufacturing of large-scale equipment. However, its pressure and temperature resistance are inferior to those of the block hole type. It is suitable for situations without strong impacts and low vibrations, and it is preferably used as a cooling device (condenser).This equipment can be classified into Type I and Type II. Type I does not have a gas-liquid separator, while Type II is equipped with a gas-liquid separator. Type II should be used as a condenser.

Product advantages

It has high heat transfer efficiency, outstanding chemical resistance, a compact design, ease of maintenance, suitability for large-scale applications, and the ability to handle temperature and pressure variations.

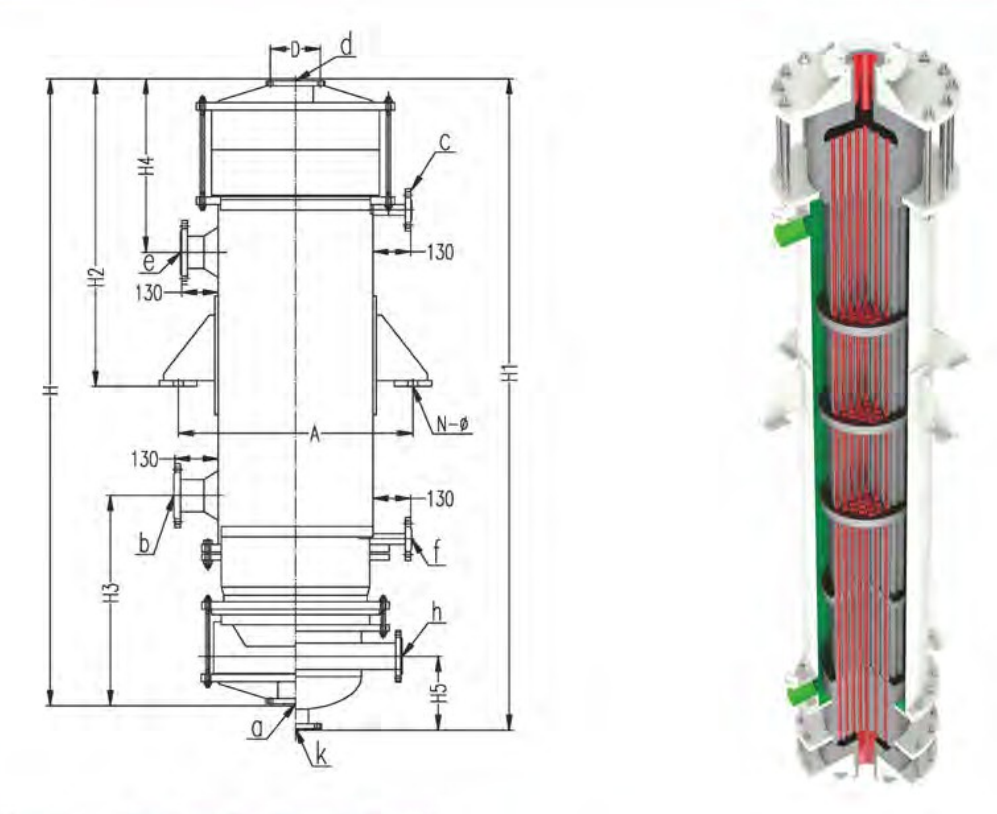

Structural diagram



Parts details
1 Material import
2 Upper cover plate
3 Graphite upperhead
4 Air defense port
5 Graphite floating head upper cover plate
6 Outlet
7 Graphite heat exchange tube
8 Graphite baffle
9 Equipment support
10 Intake
11 Graphite floating head lower cover plate
12 Drain port
13 Graphite lower head
14 Exhaust outlet
15 Material export







Others
