The TCH no-leakage stainless steel magnetic pump represents an advanced type of industrial pump. It is characterized by a full-seal design, which effectively eliminates the possibility of leakage. Constructed from stainless steel, it exhibits excellent corrosion resistance. The high-quality magnets incorporated within the pump ensure a reliable magnetic drive, making it well-suited for application in a diverse range of industries.
MOQ:
1Package:
CustomziedColor:
CustomziedMaterial:
SteelWorking Temp:
-60 to 300 ℃，New material withstands temperatures up to 450°CWorking Pressure:
1.6 to 6.3 MPa
Product overview
The TCH stainless steel permanent magnet pump （chemical process pump） represents an upgrade and innovation built upon the foundation of the TC high pressure centrifugal pump. It has been independently developed and designed as the third generation of a new industrial pump, featuring full sealing, zero leakage, and no pollution.
This chemical magnetic pump applies the principle of magnetomechanics, with the medium being enclosed within the static isolation sleeve. Through this design, it is able to achieve non-contact torque transmission. By eliminating the shaft seal device (such as packing seal or mechanical seal) commonly found in traditional centrifugal pumps and replacing the dynamic seal with a static seal, a new type of fully sealed, leak-free magnetic pump has been successfully created.
Product advantages
1. The magnet is stainless steel magnetic pump which is composed of ferrite magnet, Nd-Fe-B, and samarium cobalt. It exhibits excellent magnetic properties, high temperature resistance, and no demagnetization.
2. The shaft sleeve and sliding bearing are fabricated from highly wear-resistant materials such as silicon carbide, graphite, and tetrafluoro. Additionally, they are equipped with lubrication grooves, which effectively ensure the pump's service life.
3. It is completely leak-free. All sealing points are sealed by closed static seals and driven by a magnetic coupling. There is no need for a nitrogen seal, making it safe, economical, and efficient.
Material List
| Part | Material | Part | Material | Part | Material |
| ① Pump body | 304/316/316L | ⑥ Seal ring | Tetrafluoro | ⑪ Pump shaft | 304/316/316L/321 |
| ② Impeller | 304/316/316L | ⑦ Sealing sleeve | 316L/TA2/HC276 | ⑫ Bracket | Permenant magnet/HT200 |
| ③ Impeller nut |
304/316/316L | ⑧ Plain bearing assembly | Carbon fiber/SSIC/Cemented carbide | ⑬ Extemal magnet assembly | HT250/permenant magnet |
| ④ Pump cover | 304/316/316L | ⑨ Thrust disc assembly | Carbon fiber/SSIC/Cemented carbide | ⑭ ELectric machinery | Per clients requested |
| ⑤ Thrust disc assembly | Carbon fiber/SSIC/Cemented carbide | ⑩ Internal magnetic assembly | Permenant magnet/304/316/316L/321 | ⑮ Plate | HT200/A3/Channel steel |
Structural diagram
Performance Data
| Type | Rated power | Rated flow | Rated head | Voltage | Pump casing material | Suction |
| 25-20-125 | 1.5 | 2.5 | 20 | 380V | 304/316/316L | 25*20 |
| 25-20-160 | 2.2 | 2.5 | 32 | 380V | 304/316/316L | 25*20 |
| 25-20-200 | 5.5 | 2.5 | 50 | 380V | 304/316/316L | 25*20 |
| 25-20-250 | 11 | 2.5 | 80 | 380V | 304/316/316L | |
| 32-20-125 | 1.5 | 3.2 | 20 | 380V | 304/316/316L | 32*20 |
| 32-20-160 | 2.2 | 3.2 | 32 | 380V | 304/316/316L | 32*20 |
| 32-20-200 | 5.5 | 3.2 | 50 | 380V | 304/316/316L | 32*20 |
| 32-20-250 | 11 | 3.2 | 80 | 380V | 304/316/316L | 32*20 |
| 40-25-125 | 2.2 | 6.3 | 20 | 380V | 304/316/316L | 40*25 |
| 40-25-160 | 3 | 6.3 | 32 | 380V | 304/316/316L | 40*25 |
| 40-25-200 | 5.5 | 6.3 | 50 | 380V | 304/316/316L | 40*25 |
| 40-25-250 | 15 | 6.3 | 80 | 380V | 304/316/316L | 40*25 |
| 40-25-315 | 6.3 | 125 | 380V | 304/316/316L | 40*25 | |
| 50-32-125 | 3 | 12.5 | 20 | 380V | 304/316/316L | 50*32 |
| 50-32-160 | 4 | 12.5 | 32 | 380V | 304/316/316L | 50*32 |
| 50-32-200 | 7.5 | 12.5 | 50 | 380V | 304/316/316L | 50*32 |
| 50-32-250 | 15 | 12.5 | 80 | 380V | 304/316/316L | 50*32 |
| 50-32-315 | 12.5 | 125 | 380V | 304/316/316L | 50*32 | |
| 65-50-125 | 4 | 25 | 20 | 380V | 304/316/316L | 65*50 |
| 65-50-160 | 7.5 | 25 | 32 | 380V | 304/316/316L | 65*50 |
| 65-40-200 | 15 | 25 | 50 | 380V | 304/316/316L | 65*40 |
| 65-40-250 | 22 | 25 | 80 | 380V | 304/316/316L | 65*40 |
| 65-40-315 | 37 | 25 | 125 | 380V | 304/316/316L | 65*40 |
| 65-40-400 | 25 | 380V | 304/316/316L | 65*40 | ||
| 80-65-125 | 7.5 | 50 | 20 | 380V | 304/316/316L | 80*65 |
| 80-65-160 | 15 | 50 | 32 | 380V | 304/316/316L | 80*65 |
| 80-50-200 | 18.5 | 50 | 50 | 380V | 304/316/316L | 80*50 |
| 80-50-250 | 37 | 50 | 80 | 380V | 304/316/316L | 80*50 |
| 80-50-315 | 55 | 50 | 125 | 380V | 304/316/316L | 80*50 |
| 80-50-400 | 50 | 380V | 304/316/316L | 80*50 | ||
| 100-80-125 | 15 | 100 | 20 | 380V | 304/316/316L | 100*80 |
| 100-80-160 | 22 | 100 | 32 | 380V | 304/316/316L | 100*80 |
| 100-65-200 | 37 | 100 | 50 | 380V | 304/316/316L | 100*65 |
| 100-65-250 | 45 | 100 | 80 | 380V | 304/316/316L | 100*65 |
| 100-65-315 | 75 | 100 | 125 | 380V | 304/316/316L | 100*65 |
| 100-65-400 | 100 | 380V | 304/316/316L | 100*65 | ||
| 125-80-160 | 380V | 304/316/316L | 125*80 | |||
| 125-100-200 | 55 | 200 | 50 | 380V | 304/316/316L | 125*100 |
| 125-100-250 | 75 | 200 | 80 | 380V | 304/316/316L | 125*100 |
| 125-100-315 | 22 | 100 | 32 | 380V | 304/316/316L | 125*100 |
| 125-100-400 | 37 | 100 | 50 | 380V | 304/316/316L | 125*100 |
| 150-125-250 | 22 | 200 | 20 | 380V | 304/316/316L | 150*125 |
| 150-125-315 | 45 | 200 | 32 | 380V | 304/316/316L | 150*125 |
| 150-125-400 | 55 | 200 | 50 | 380V | 304/316/316L | 150*125 |
| 200-150-250 | 55 | 400 | 20 | 380V | 304/316/316L | 200*150 |
| 200-150-315 | 75 | 400 | 32 | 380V | 304/316/316L | 200*150 |
| 200-150-400 | 110 | 400 | 50 | 380V | 304/316/316L | 200*150 |

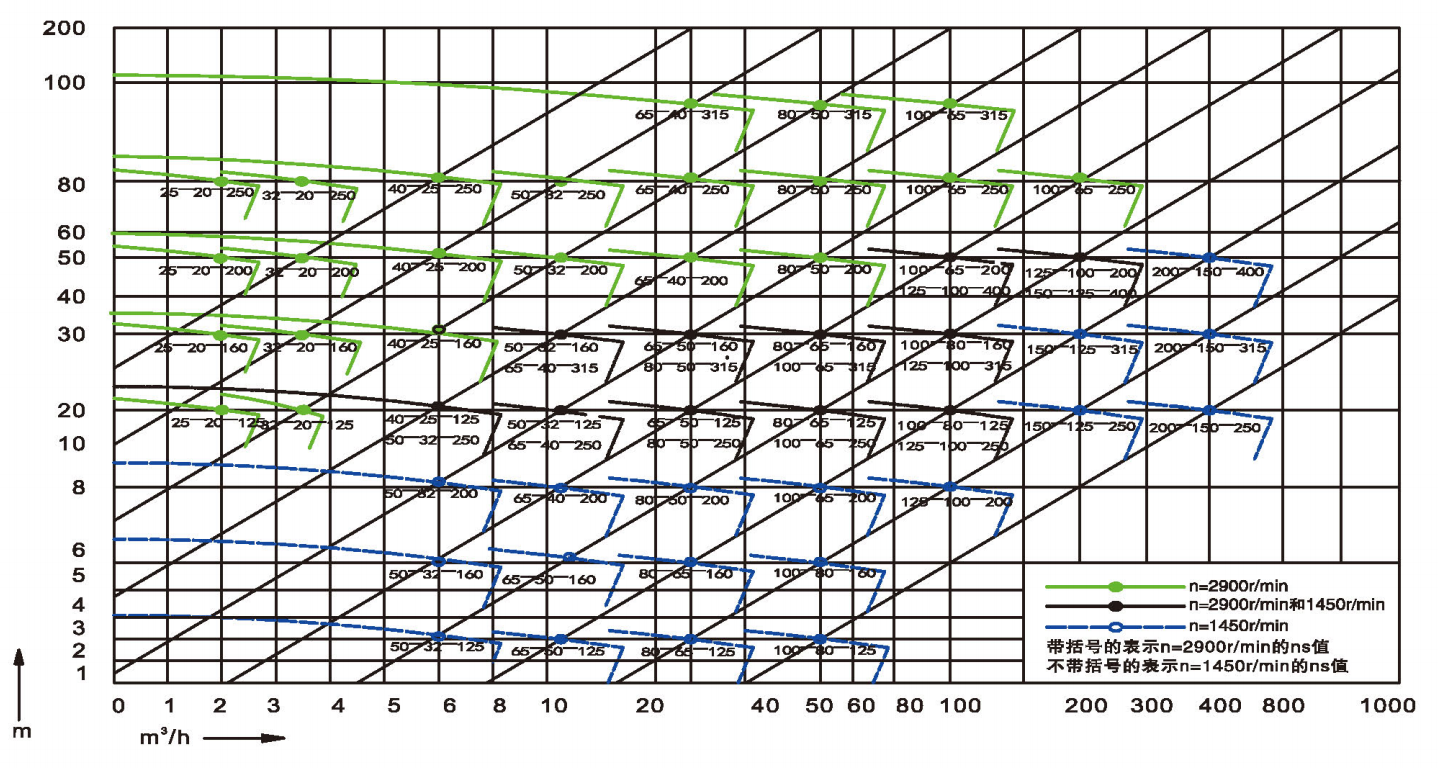

Performance range
Design pressure :1.6~6.3MPa, Flow :0.75~460m³/ h , Lift :5~125m, Power :0.55~110KW.
Applicable temperature :-60~300℃, new materials are adopted , and the temperature resistance can reach 450℃.
Product application
It is extensively utilized for transporting corrosive liquids within the production processes of various industries, such as petroleum, chemical engineering, alkali production, smelting, rare earth extraction, pesticide manufacturing, dye production, pharmaceuticals, papermaking, electroplating, and electrolysis. In particular, it is suitable for handling the transportation of flammable, explosive, volatile, toxic, high-temperature, strong alkali, and organic solvents.
Others informations of factory
A magnetic pump belongs to the new generation of centrifugal pumps. It is composed of a pump, a magnetic actuator, and a motor. Torque is transferred via magnetic force, thereby preventing leaks. This type of pump is corrosion-resistant and applicable to various industries such as the chemical and pharmaceutical industries.
Details
The TCSF no-leakage lining fluorine magnetic pump is a remarkable device. It is lined with fluorine, which endows it with excellent corrosion resistance. The magnetic drive mechanism guarantees a leak-free operation, making it an ideal choice for the transfer of fluids in chemical and industrial applications.
Details
The no-leakage fluorine-lined magnetic pump is characterized by its high corrosion resistance, which is attributed to the fluorine lining. The magnetic drive mechanism ensures a hermetic seal, preventing any leakage, and making it suitable for a wide range of fluid transfer applications.
Details
The magnetic vacuum pump utilizes magnetic coupling for torque transmission. This eliminates the necessity for seals, thereby reducing the risks of leakage. It is well-suited for a wide range of vacuum applications.
Details
It features a fluorine lining for excellent corrosion resistance. High - quality materials ensure durability. Efficient centrifugal action enables stable fluid transportation, suitable for various chemical processes.
Details
The TCAF Series chemical process no-leakage magnetic pump utilizes a magnetic coupling for sealing, thereby achieving zero leakage. It is an ideal choice for chemical processes, as it ensures both safety and the stable transfer of fluids.
Details
The TY series stainless steel submersible pump is constructed of stainless steel, endowing it with excellent corrosion resistance. It boasts high performance and reliability, making it an ideal choice for liquid transfer in a wide range of applications.
Details
Chemical centrifugal force pump, with simple structure, converts rotational energy into hydrodynamic energy to transport various liquids. Widely used in multiple industries, it is energy-saving, durable, and has a long service life.
Details
